GoCaddy UTV Rancher 2 Seater
Adventure Ready.
MANUFACTURER:
Jinbo San Asia (Shenzhen) Manufacturing Co., Ltd.
Shenzhen, China,
Distributed by: GOCaddy Golf
Brand: GOCaddy®

Email: admin@jb3.asia

OVERVIEW:

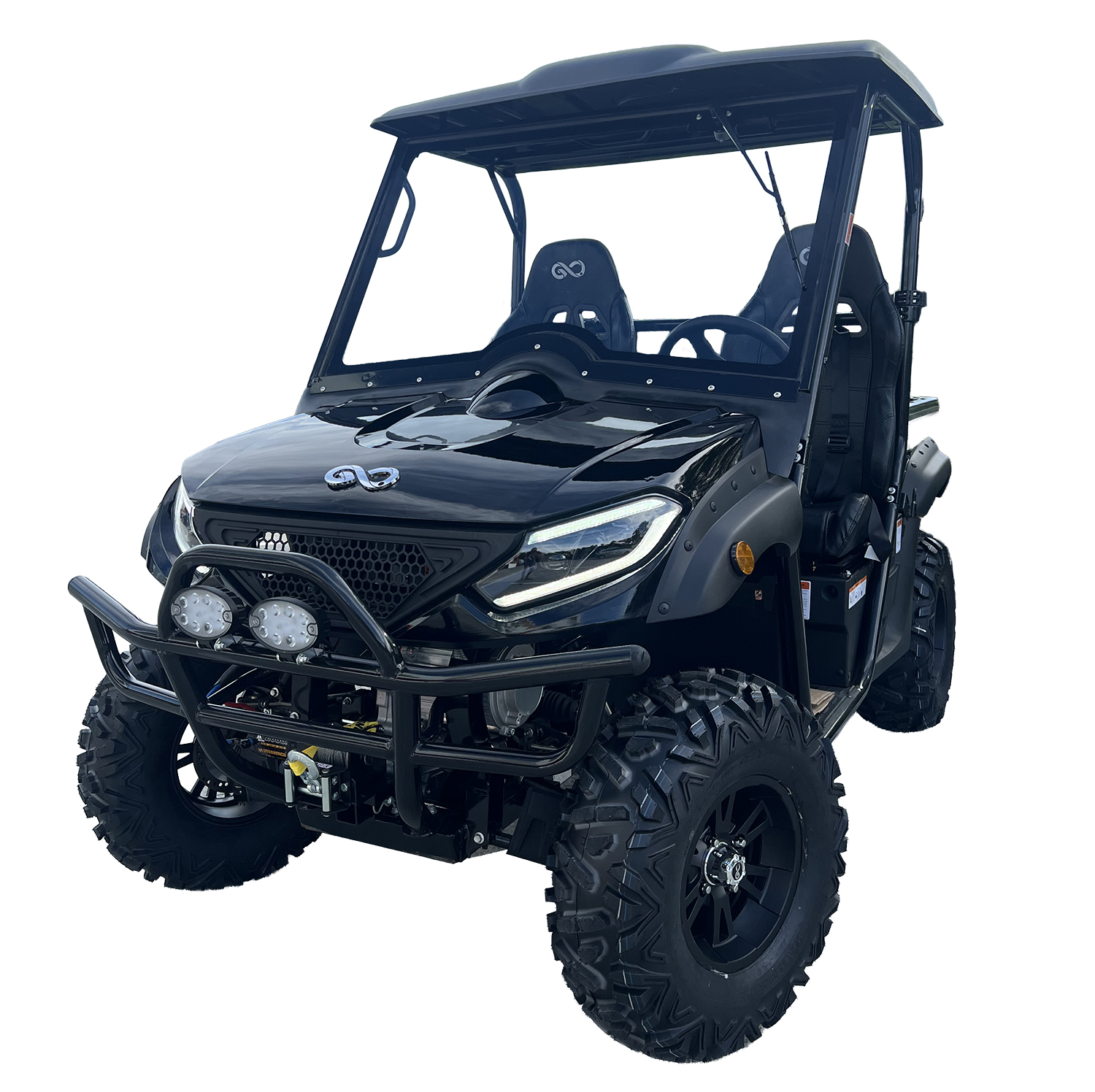

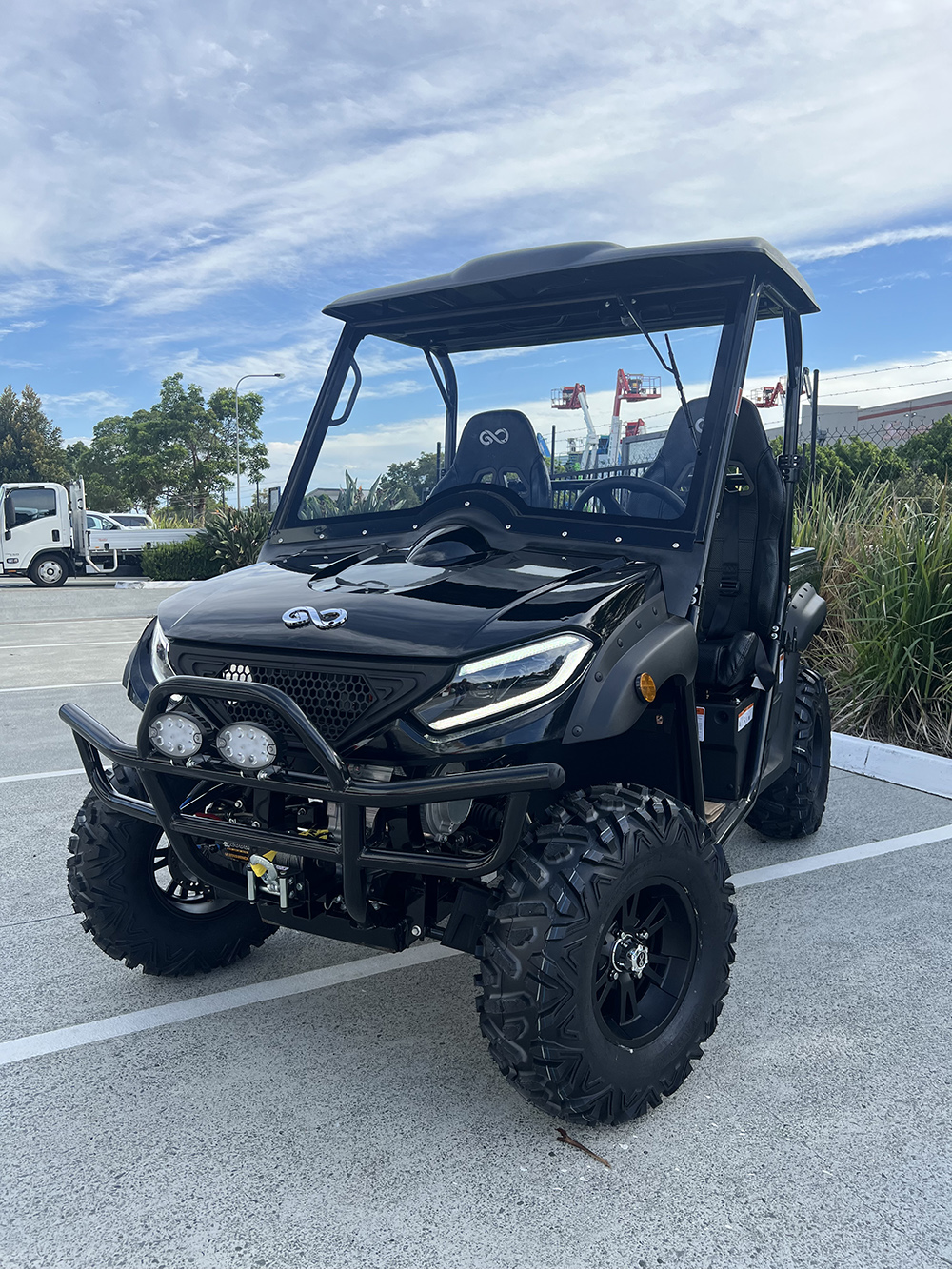

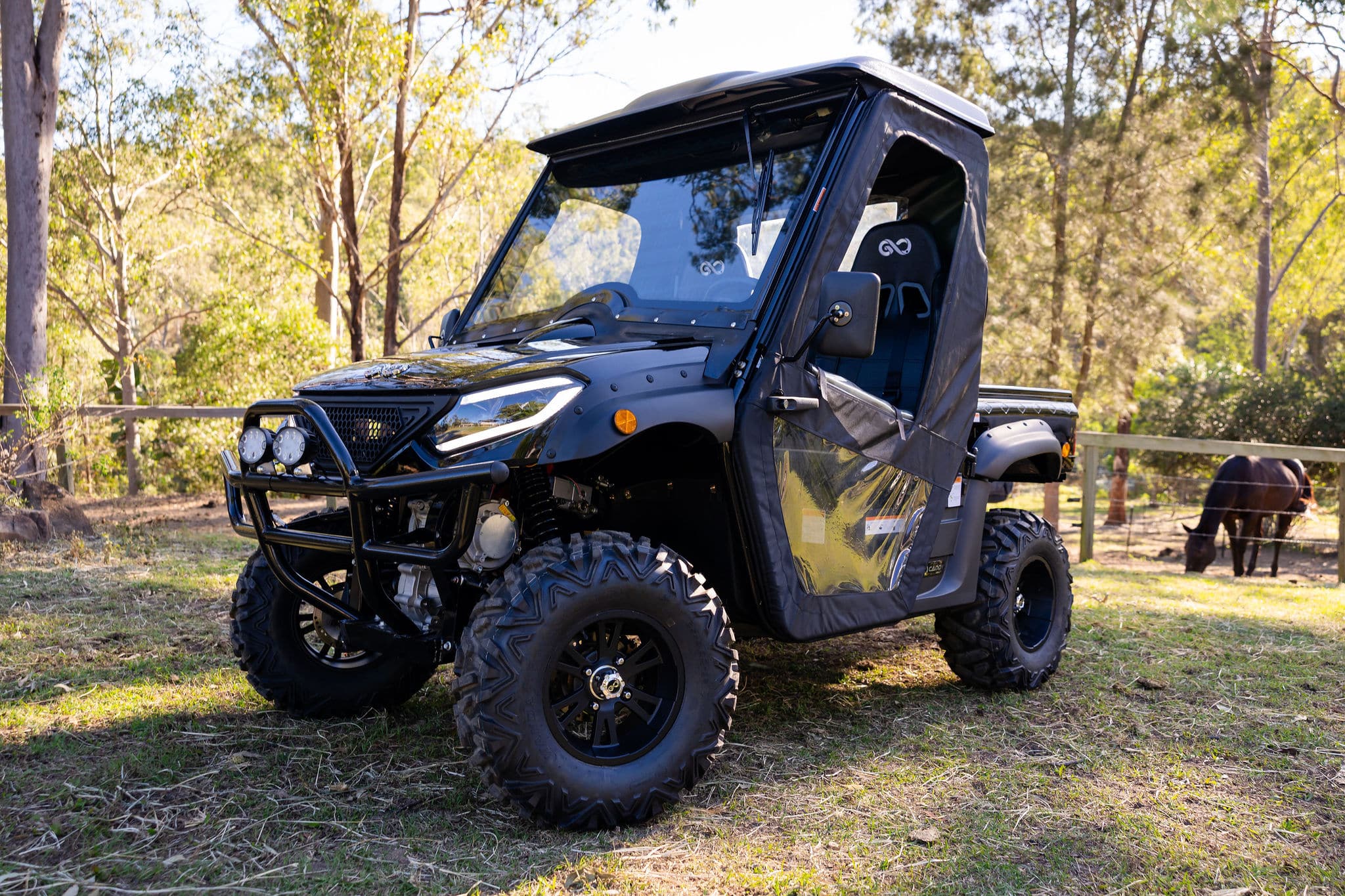

GOCaddy RANCHER. Not just a utility vehicle—a properly engineered workhorse.

At first glance, it may resemble other UTVs. But beneath the surface, this machine is built to a completely different standard. The Rancher is purpose-engineered for those who demand genuine capability, not compromises.

The heart of the Rancher is its dual-motor 10kW high-torque powertrain—3kW front, 7.5kW rear—delivering instant, silent torque across all four wheels. Powered by a 76.8V, 230Ah maintenance-free lithium battery, it achieves up to 150km range and up to 55 km/h top speed. Zero emissions. Minimal maintenance. Maximum uptime.

Four-wheel disc brakes with power assistance provide confident stopping power, even under load. Independent strut suspension with hydraulic shocks on all corners absorbs the roughest terrain. The AC intelligent controller and infinitely variable speed system deliver seamless acceleration and precise control, whether you’re climbing grades or navigating tight bush tracks.

Practicality is engineered into every detail. The tilting cargo bed carries 185kg. Tow ball rated at 500kg towing capacity, 340kg climbing ability at 30 degrees. Electric winch, nudge bar, and integrated spot lights come ready for work. Soft doors with zip-out windows and full rain covers keep the elements at bay.

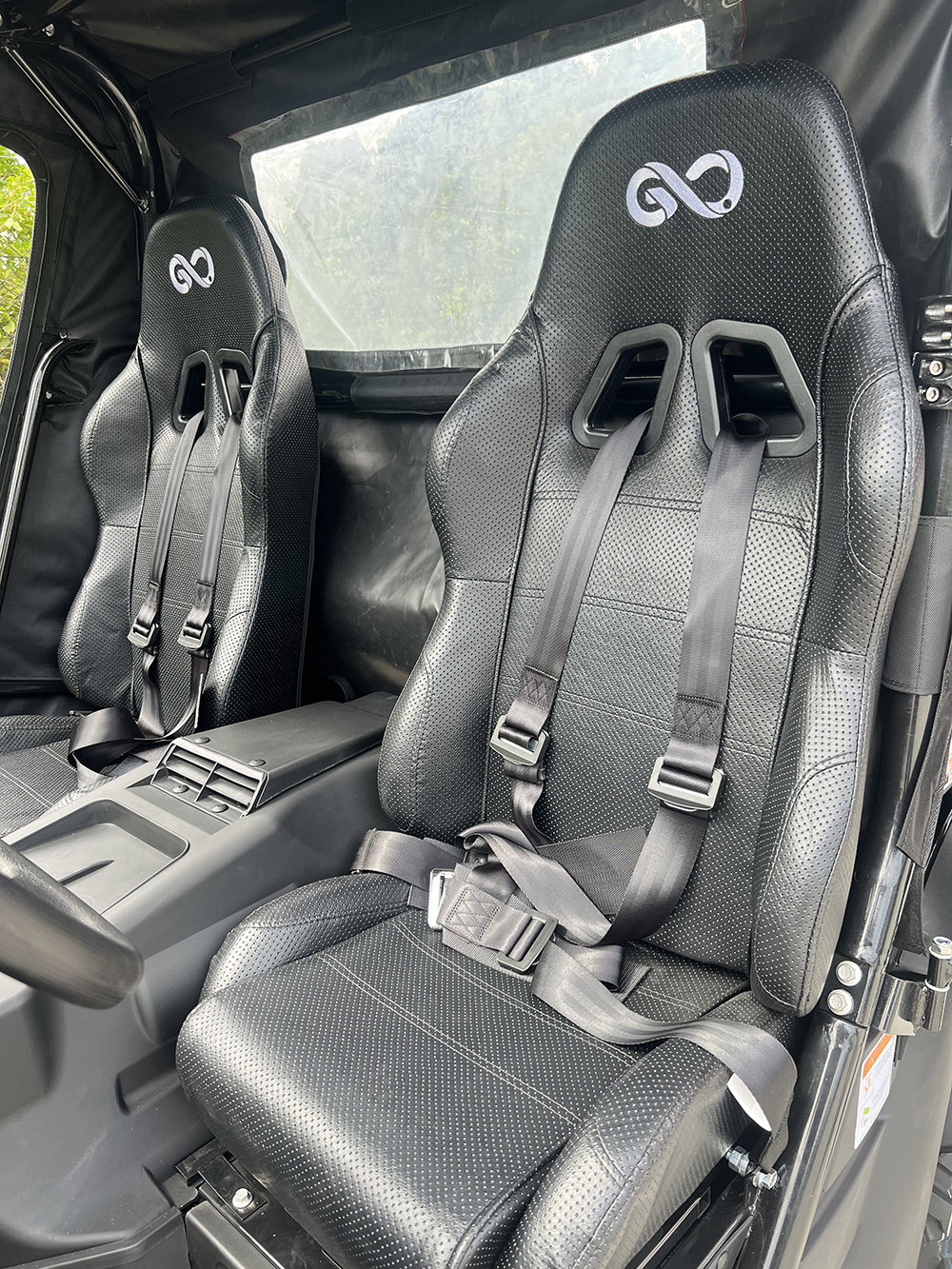

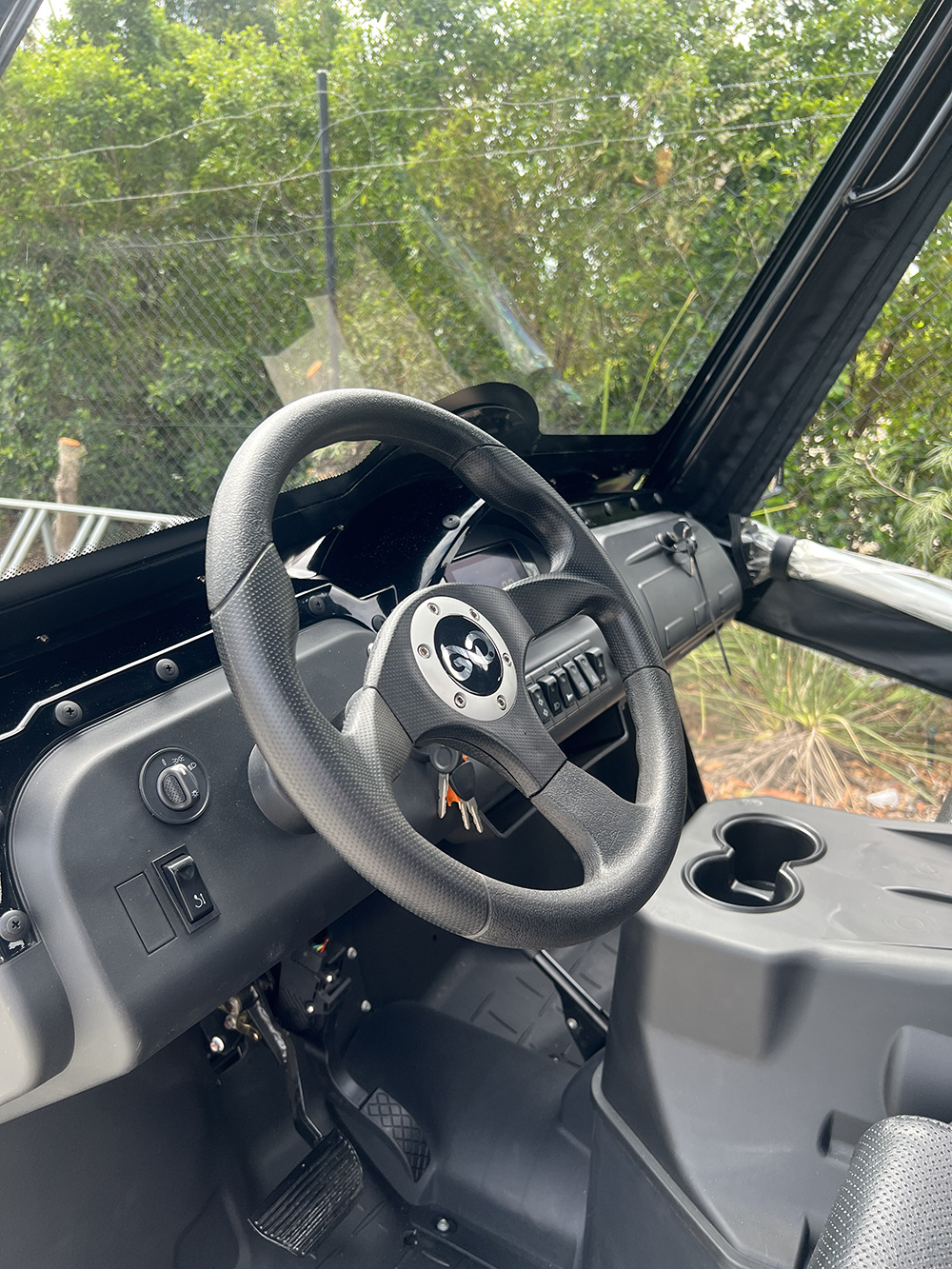

Inside, the operator commands adjustable, high-grade leather seats with three-point harnesses. Full glass windscreen with independent wiper. Five-inch LCD display showing speed, battery levels, trip data, and 2WD/4WD select. Side mirrors. USB ports. Horn, indicators, and spot light controls positioned intuitively.

Powder-coated steel frame. Injection-molded PP body. Off-road tyres with 6-ply rating. Ground clearance of 220mm. Minimum turning radius of just 3.5 metres.

This is not a golf cart dressed for the farm. It is a zero-emission utility vehicle engineered from the ground up for rugged terrain, heavy workloads, and years of reliable service.

GOCaddy RANCHER.
Distinctly different.
RANCH READY!

CONSTRUCTION:
Feature
Specification
Weight 788kg Net, 840kg Gross Weight, Overall UTV Load Weight 999kg
Capacity 2 People
Overall Dimensions (L × W × H) 2950 × 1430 × 1780mm (with extras added)
ELECTRICAL SYSTEMS:
Feature
Specification
Motor 10kW high-torque motors (3kW front; 7.5kW rear)
Battery 76.8V, 230Ah maintenance-free lithium battery. Separate battery for winch included for R02W model
Electricity Consumption 10kWh on a single charge
Controller Enpower (MC3527)
Charger Onboard charging system with body-mounted charge indicator
Motion Transfer Infinitely variable speed system
BODY CONFIGURATION:
Feature
Specification
Frame Powder-coated steel
Body Material Injection-molded PP
Roof Injection-molded PP – black
Front Windshield Full glass windscreen with window wiper on separate switch
Safety Restraint Three / four-point seat belts (harness type)
Mirrors Side mirrors

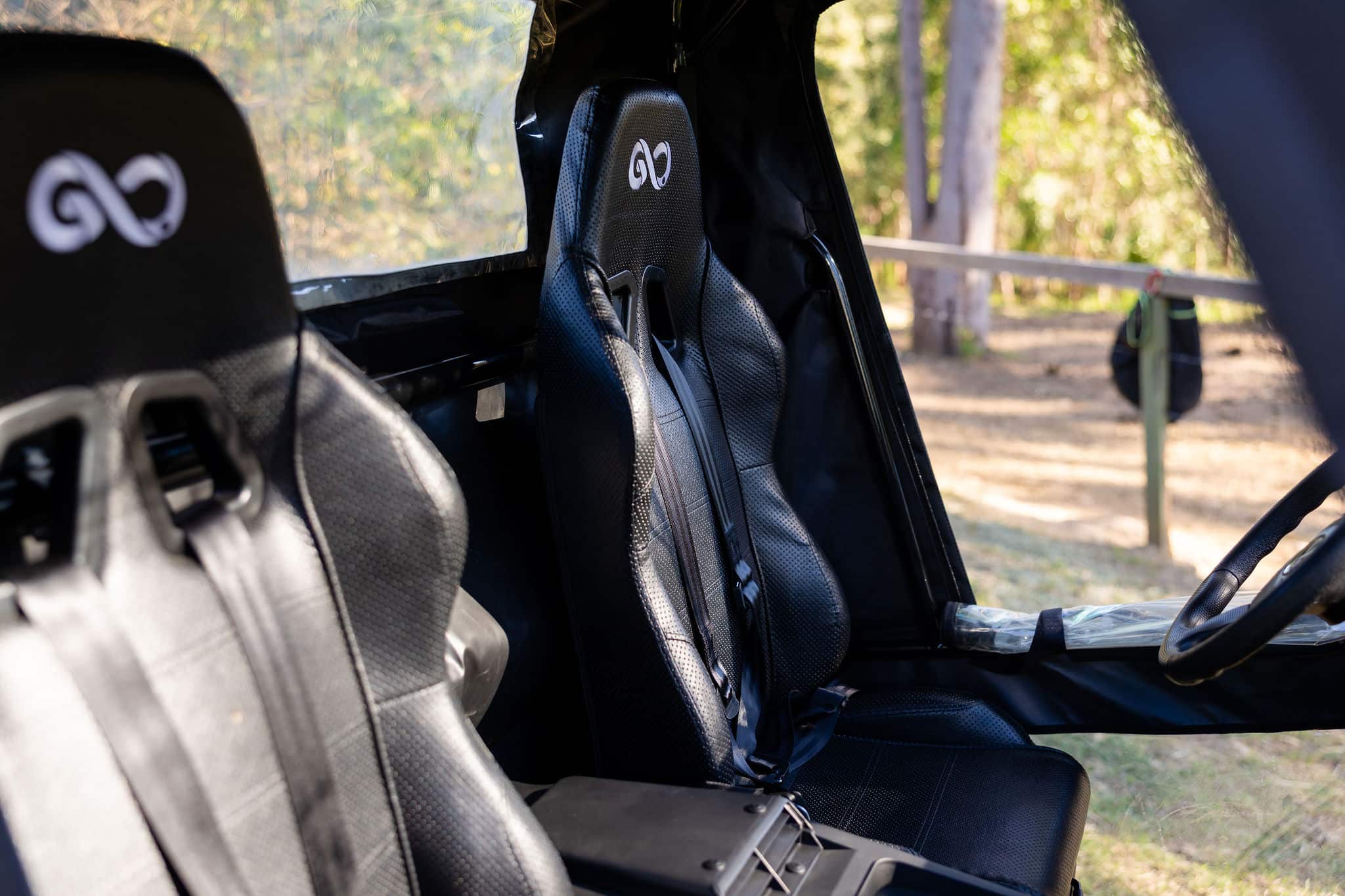

Seats Integral foam cushion with solid high-grade leather
Seats Adjustable Adjustable seating positions
Steering Self-compensating reduction rack and pinion

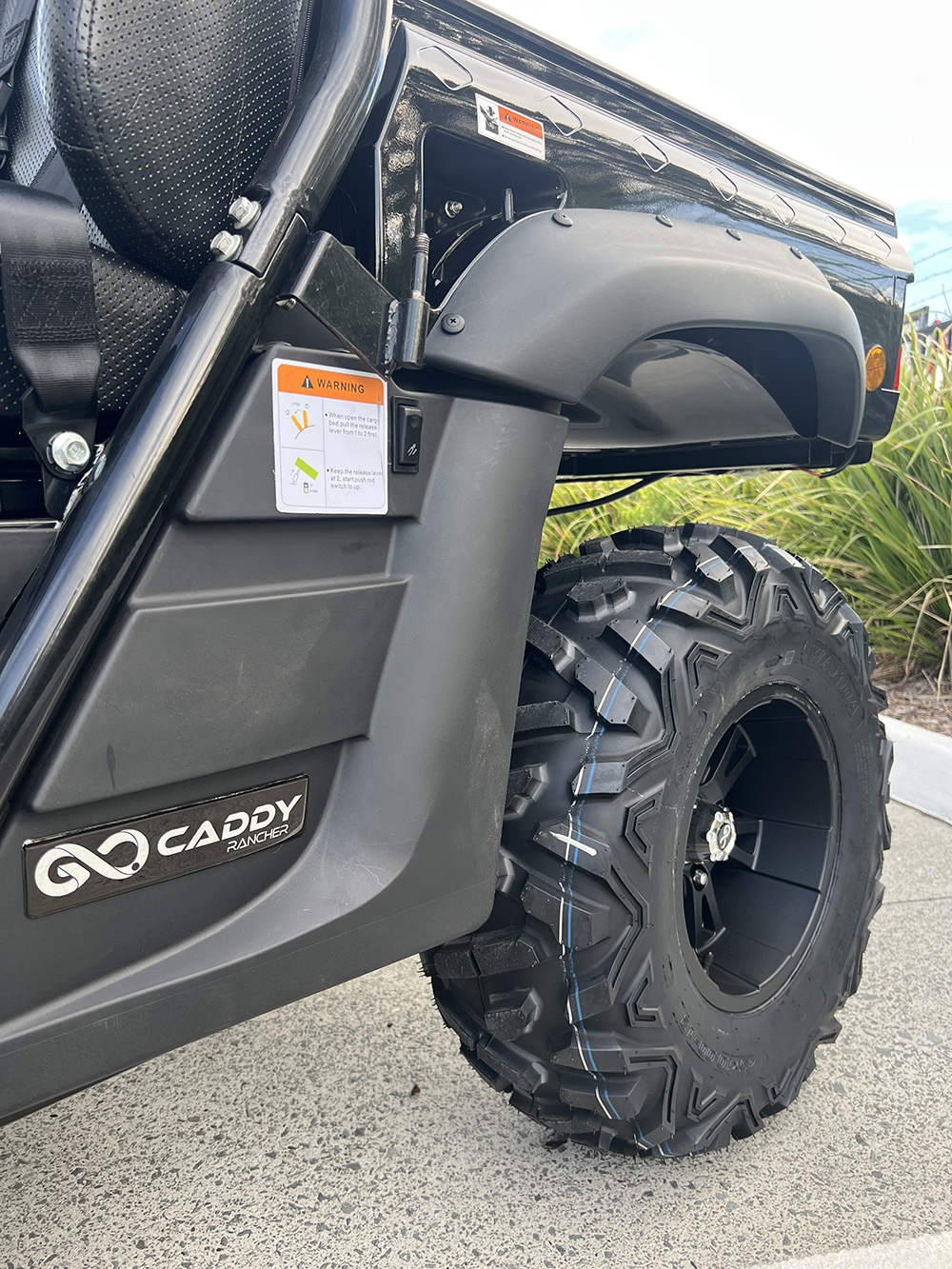

Wheels & Tires Off-road tires, 6-ply rating, tubeless nylon
Front: 175/65 R14 82H – 25×8.00-12
Rear: 175/65 R14 82H – 25×10.00-12
Braking System Four-wheel disc brakes with power-assisted braking
Park Brake Hand brake, hand-actuated
Front Suspension Independent strut suspension with coil spring and cylinder-type hydraulic shock absorber
Rear Suspension Integral rear axle with coil spring and cylinder hydraulic shock absorbers
Wheelbase 1905mm
Lighting & Signals Headlights, taillights, brake lights, hazards, daylight driving lights, indicators, horn on separate switch, spot lights on separate control
Max Speed (Forward) Up to 55 km/h
Max Travelling Range Up to 150km in 2WD on even road conditions (guide only)

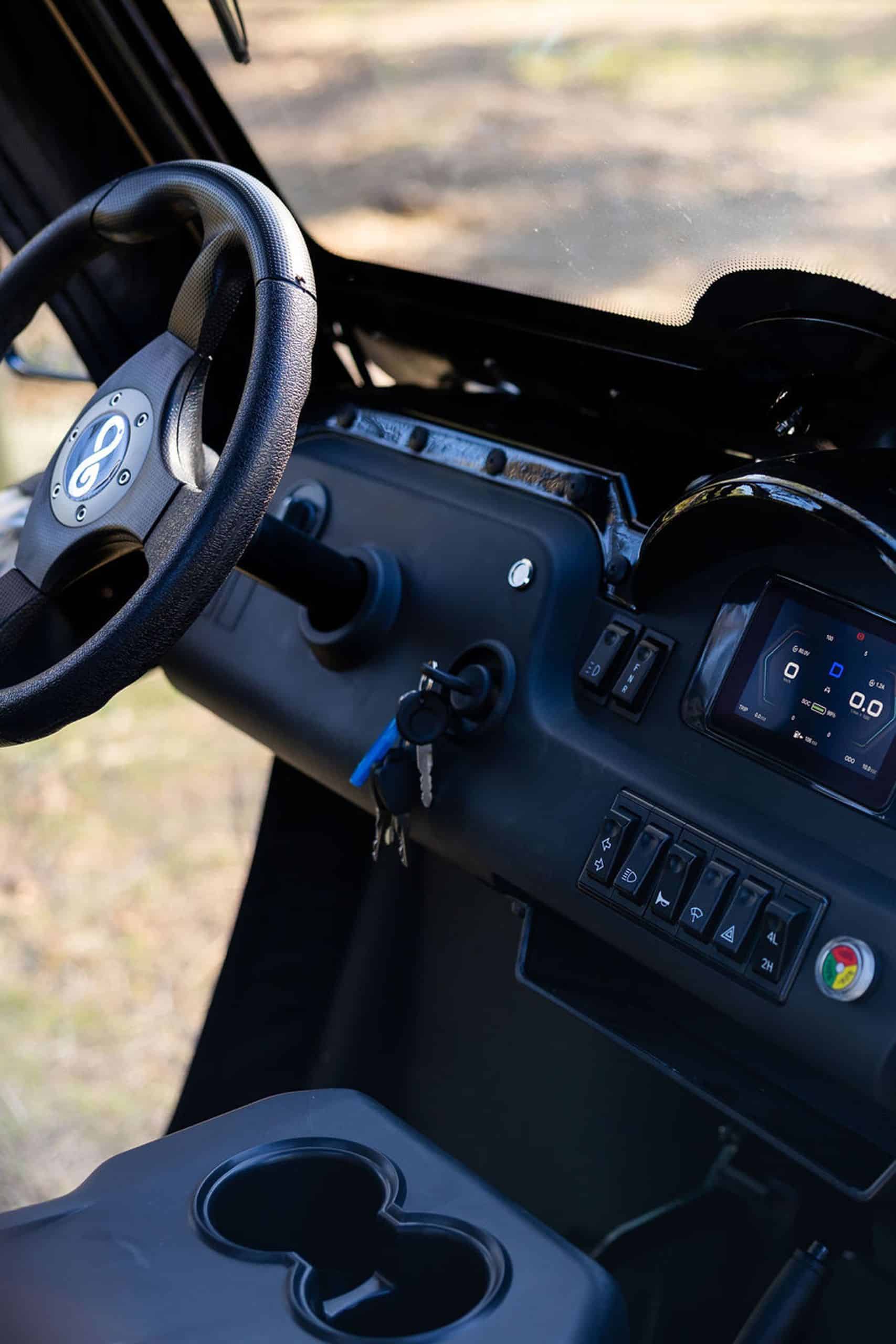

LCD Screen 5-inch display showing battery level, 2WD / 4WD status, trip meter, speed, indicators, and more
USB USB ports suitable for phones and accessories
Shock Absorbers Shock absorbers on all front and rear wheels

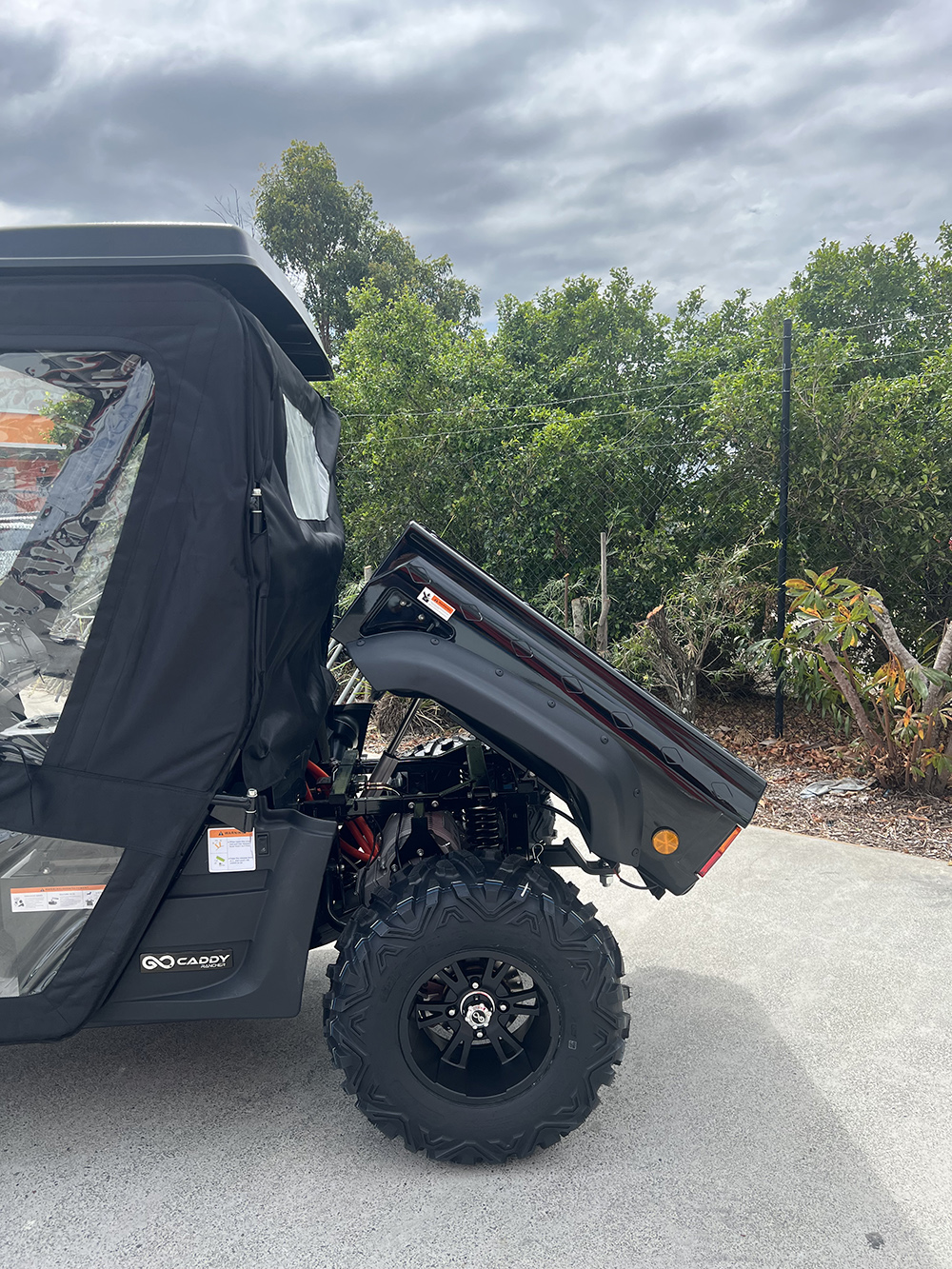

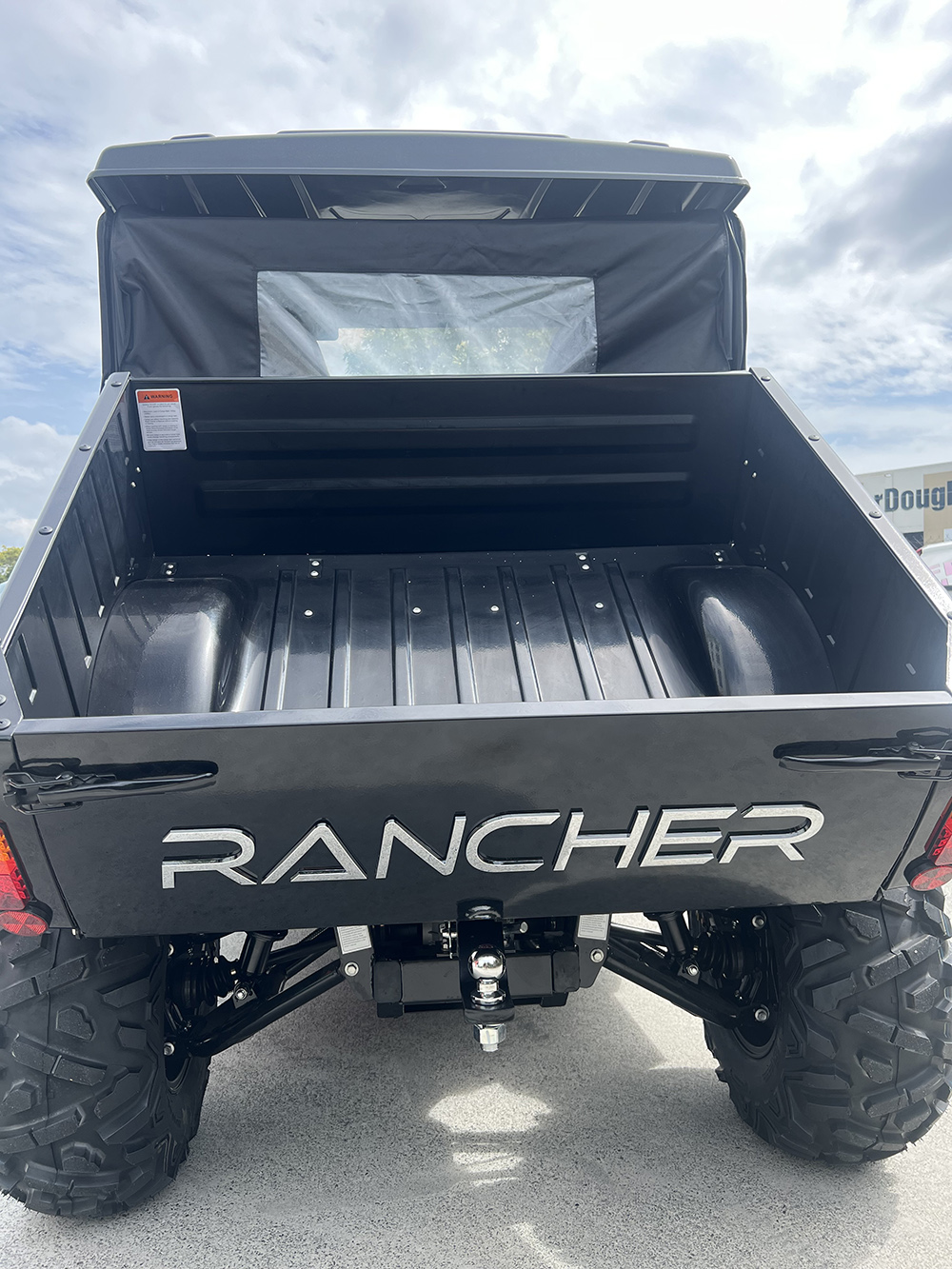

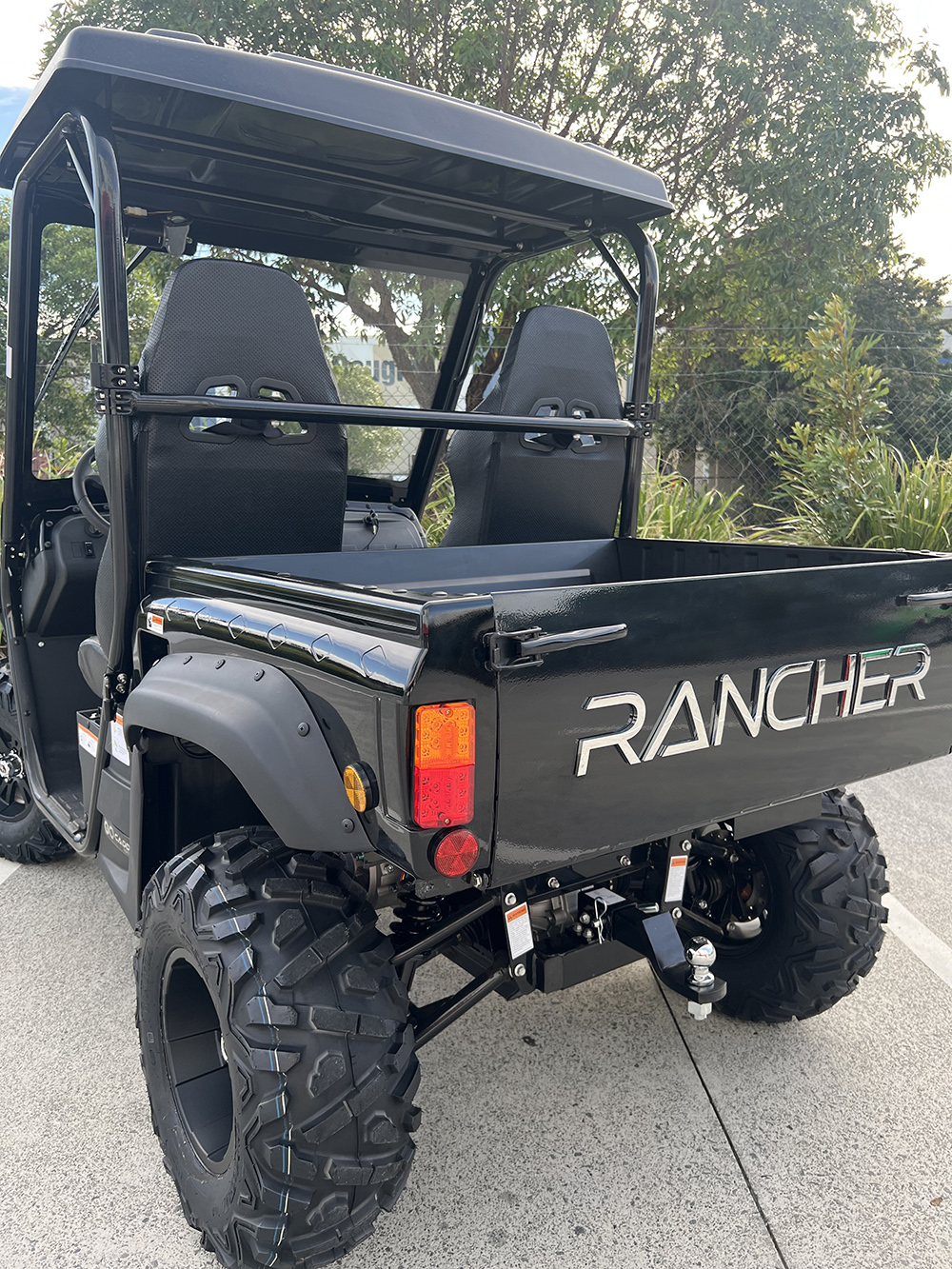

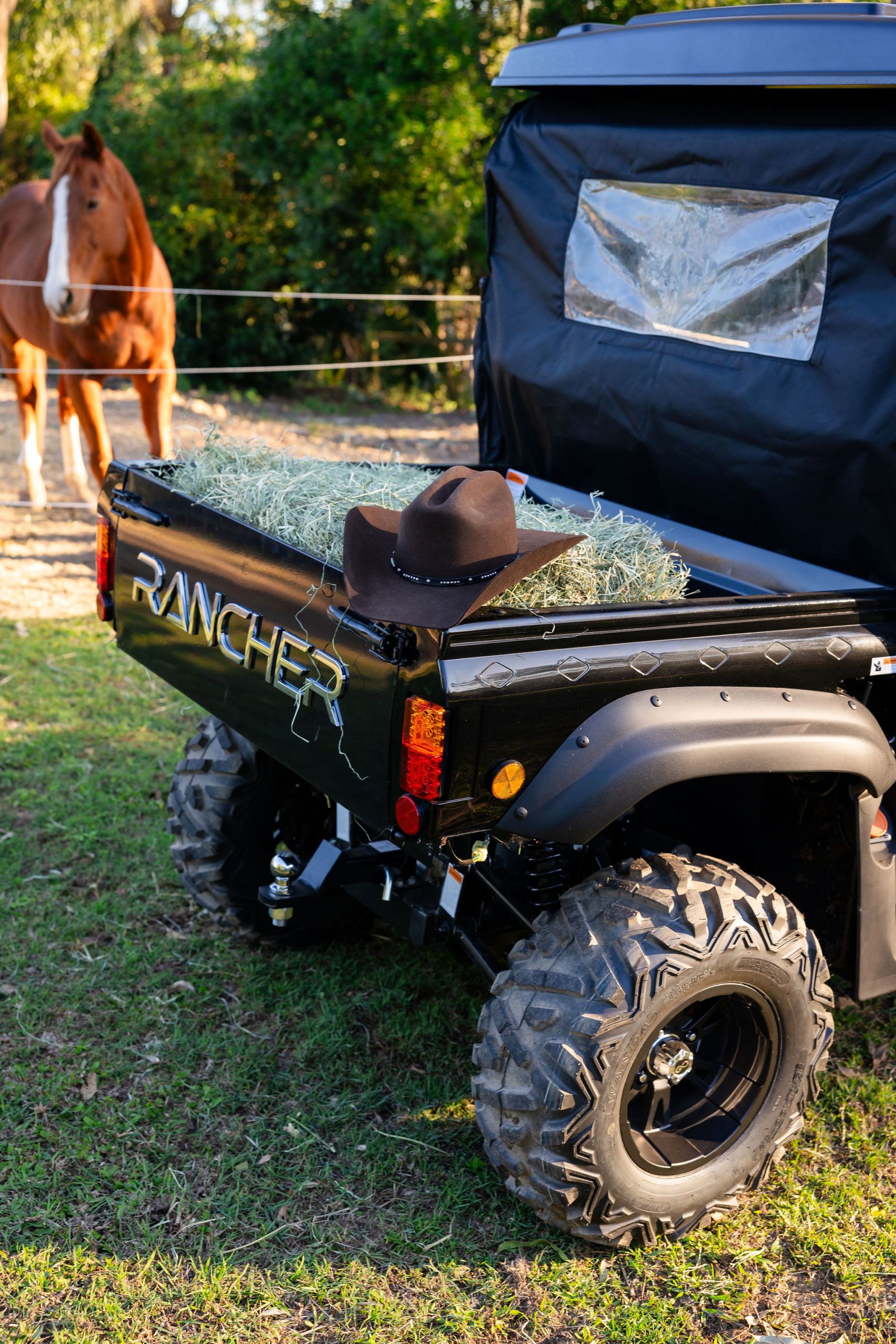

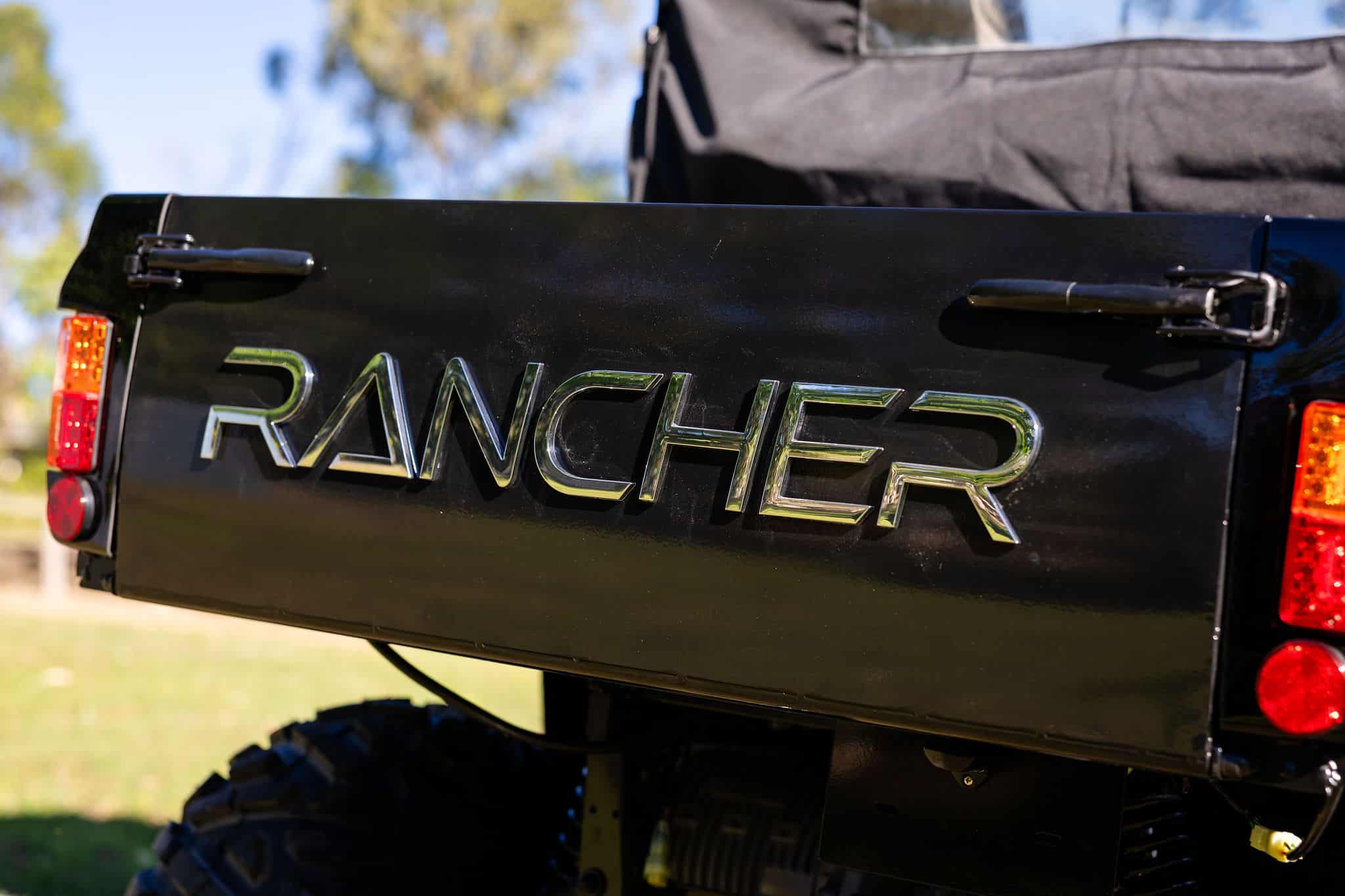

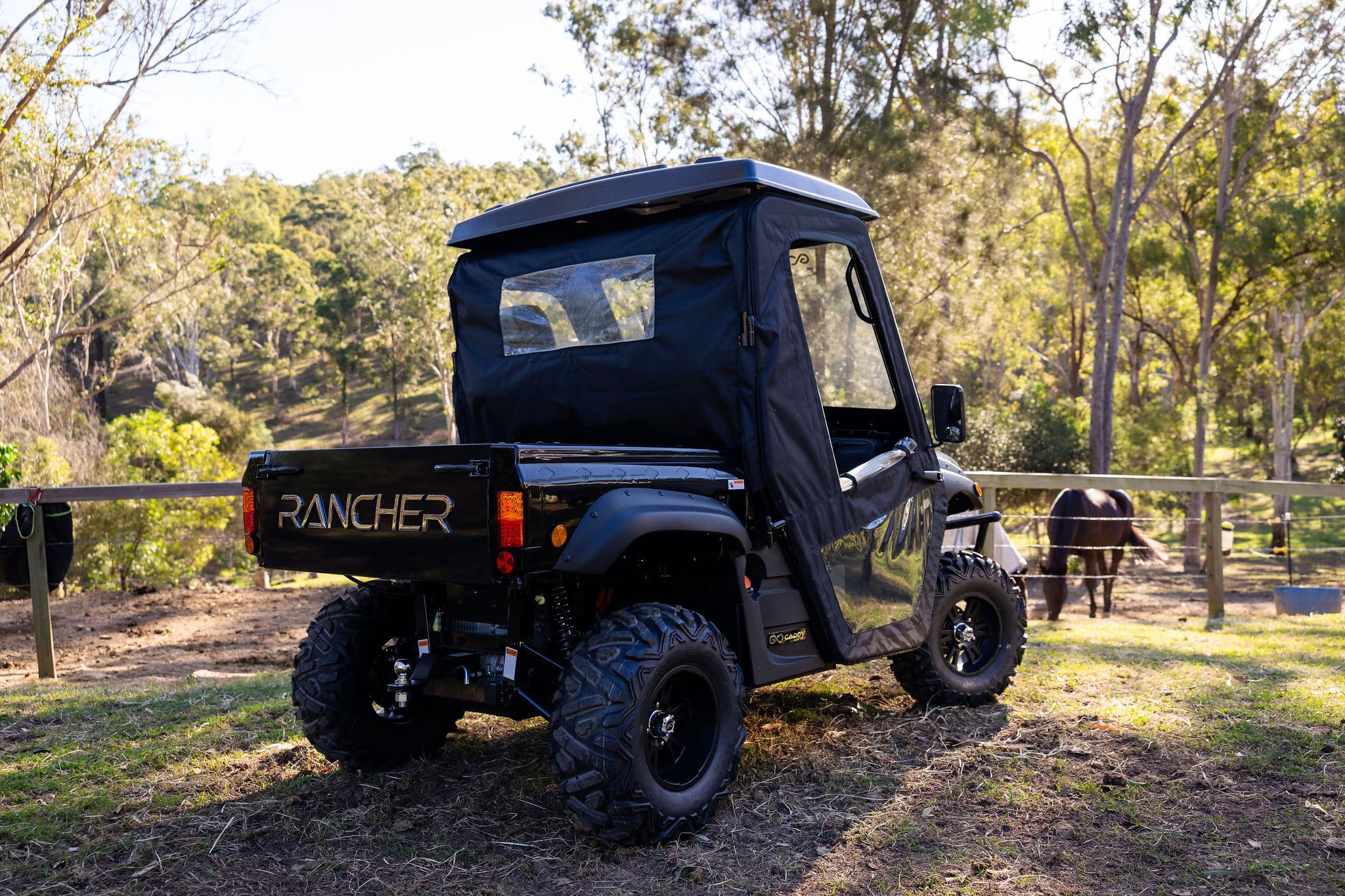

Cargo Bed Tilt lifting release cargo bed, 140kg capacity
Cargo Bed Dimensions 1180 × 930 × 340mm (L × W × H)
Winch Electric winch – NVK2000 configuration – available on selected models

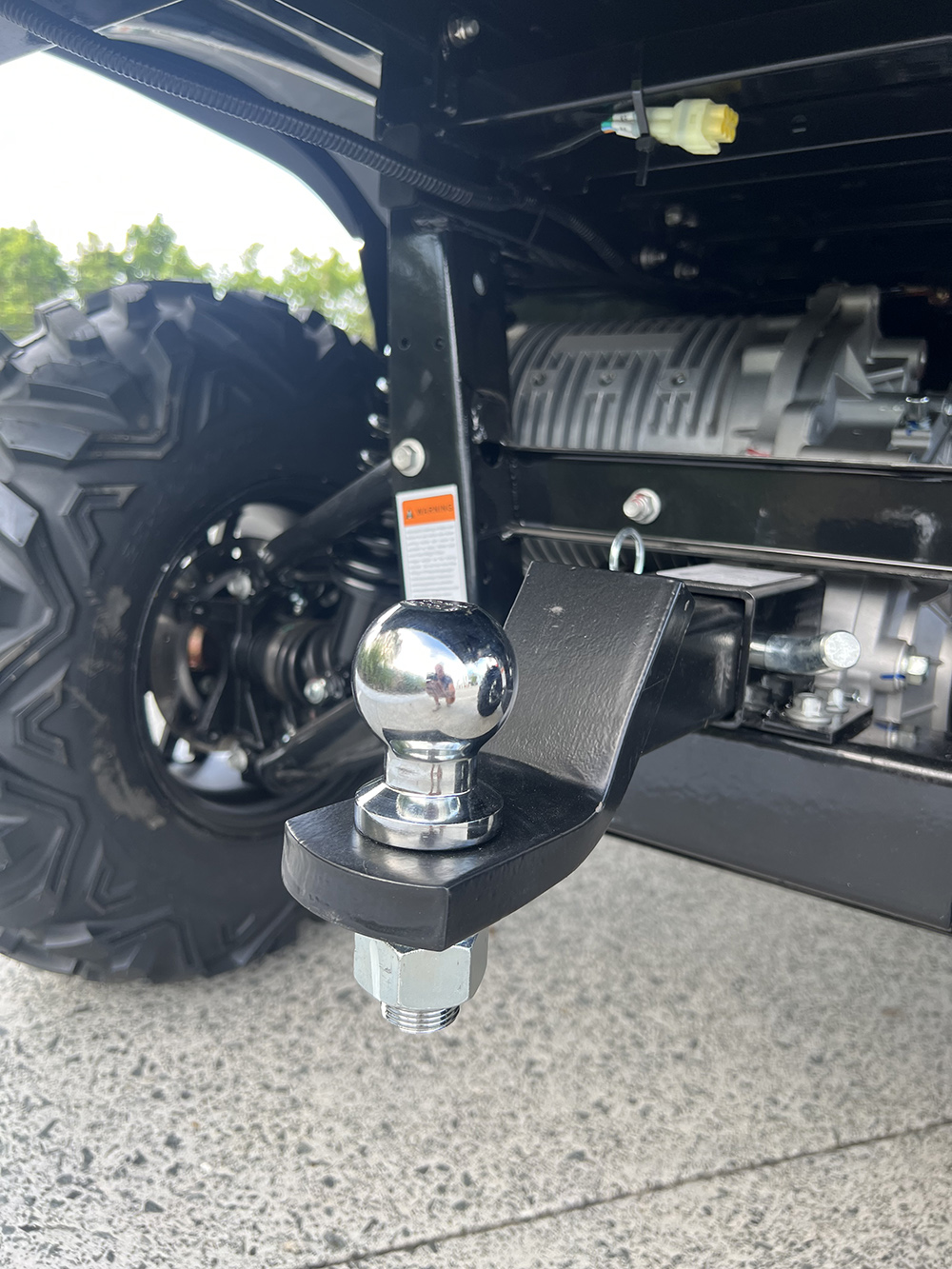

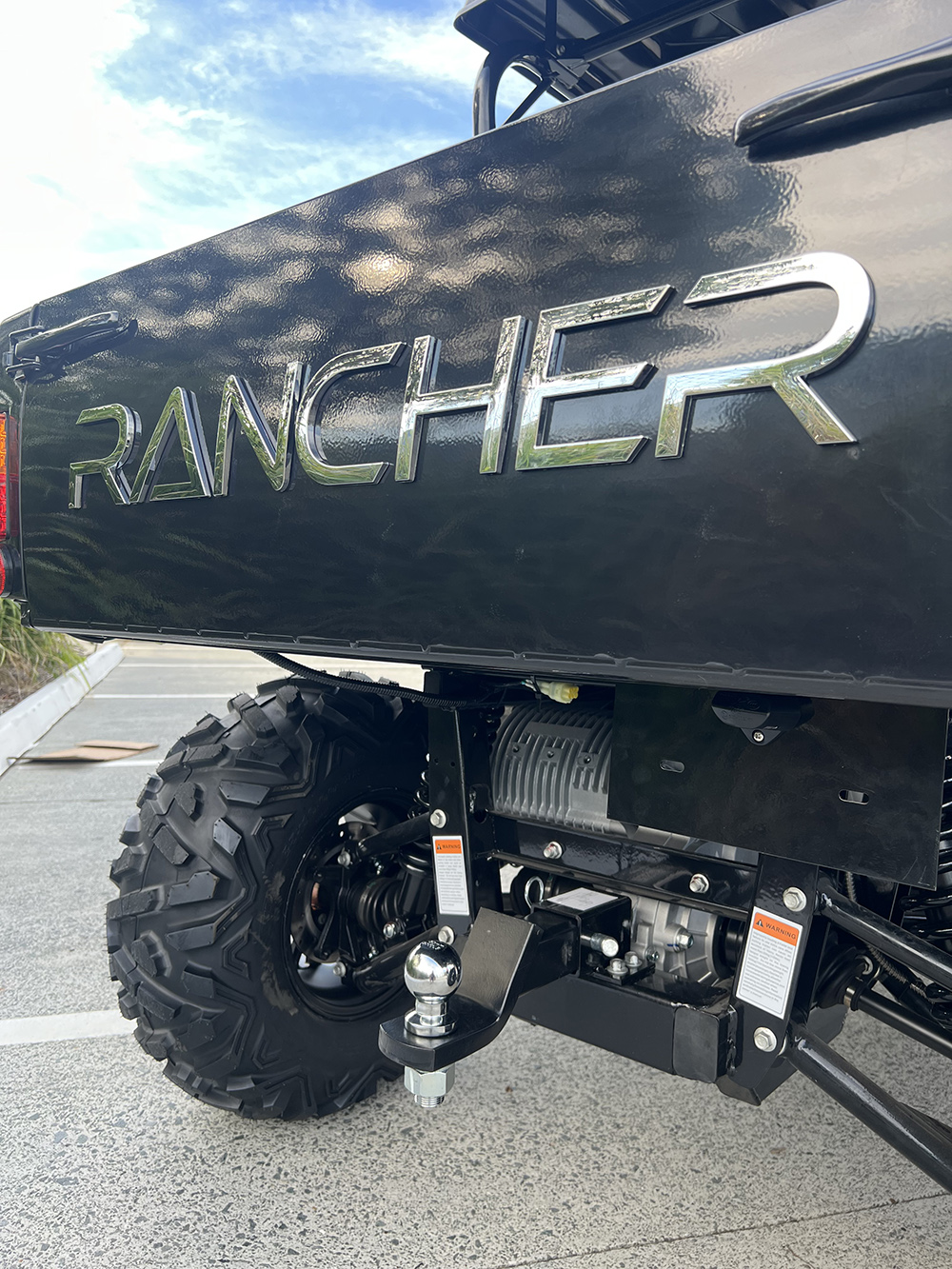

Tow Ball Tow ball trailer hitch
500kg carrying capacity
340kg climbing ability at V = 30°

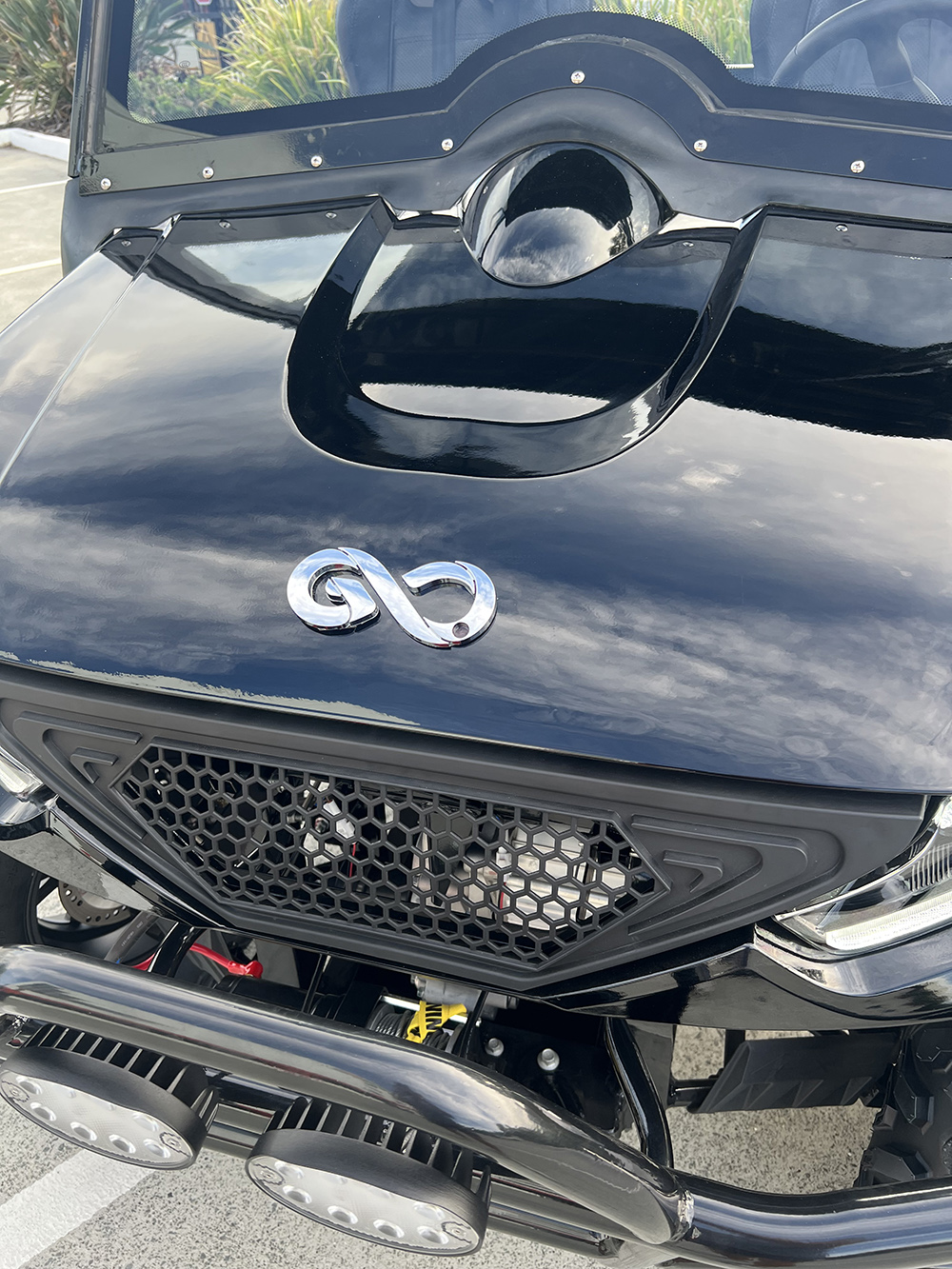

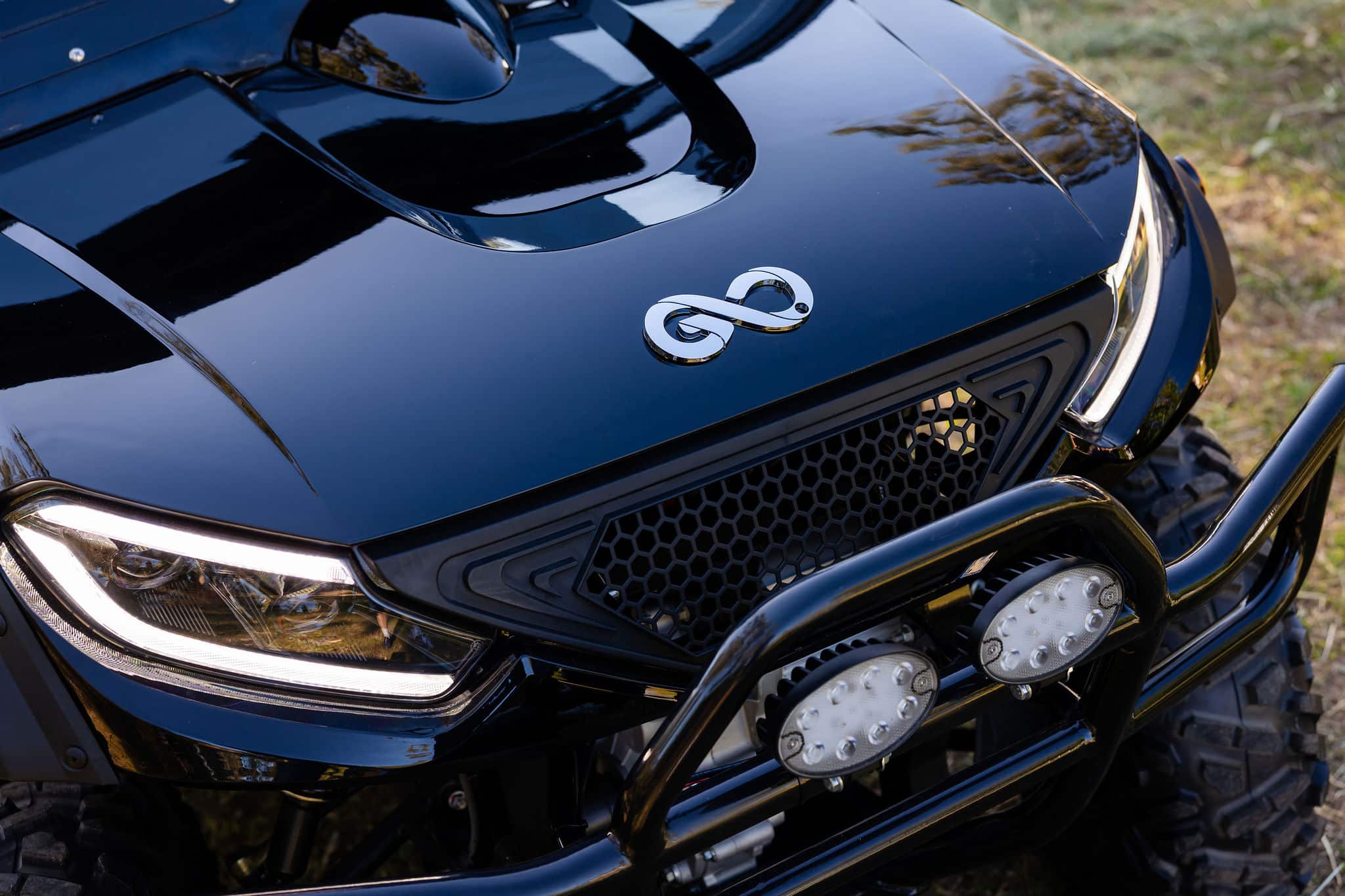

Nudge Bar Nudge bar with spot light attachment
Wet Weather Rain covers included
Doors Soft doors with window insert and zipper
Minimum Ground Clearance 220mm
Minimum Turning Radius 3.5m
